Why Metal Stitching Even Matters

Most people say, “Time to scrap and replace,” when a heavy machine casting breaks, a turbine housing splits, or a cast iron engine block cracks. But what if you could fix that broken piece of metal without welding, bending it, or replacing the whole thing? That’s where metal stitching (sometimes called metalocking) comes in. It might save you a lot of money.

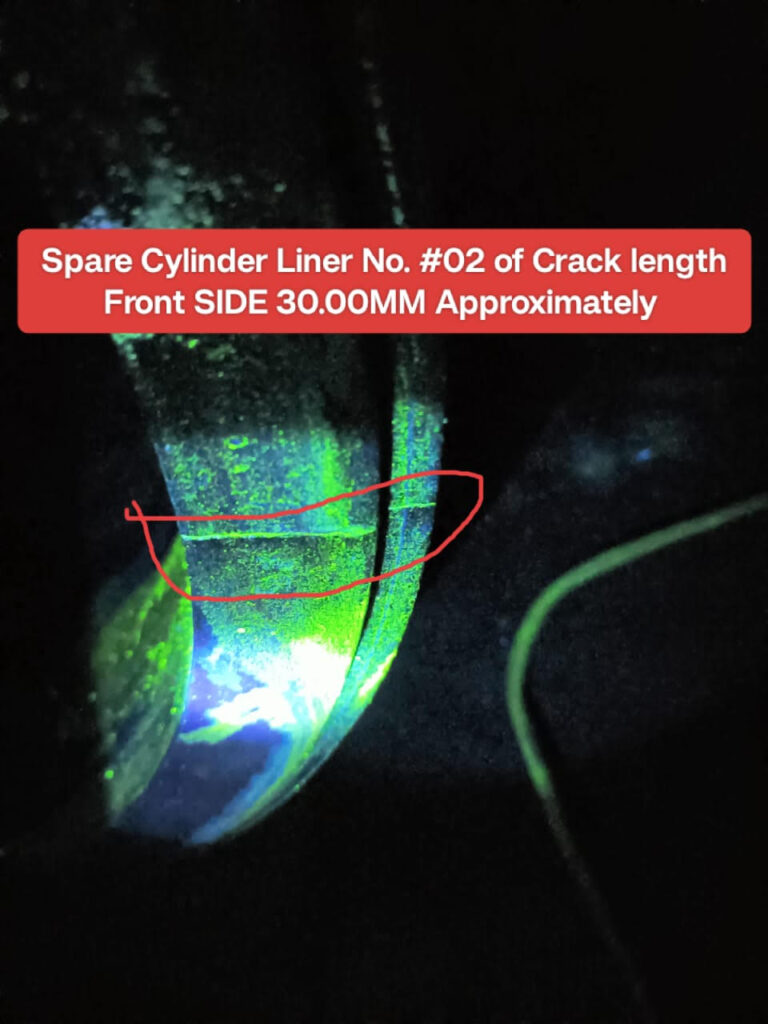

Cylinder Sleeves Crack Observed in MPI — Crack Observed in MPI Test

What Metal Stitching or Metalocking Actually Means

Metal stitching, which is also known as cold metal mending or metalocking, is a tried-and-true way to fix cast iron, steel, aluminum, or other comparable cast parts that are cracked or damaged. This method doesn’t involve welding, which melts metal, adds heat, and can cause distortion. Instead, it employs specially designed metal “keys” or “locks” and stitching pins to mechanically pull the broken sections back together, sealing the fracture and restoring strength.

This procedure goes back to the 1930s, when it was first used to fix oil-field castings where welding with an open flame was dangerous.

How the Process Works (Step by Step)

1. Drilling or stop-holes: Technicians drill holes at the extremities of the crack to keep it from spreading.

2. Making a slot or aperture: A pattern of holes is made along the crack, usually at right angles, and then connected to provide a slot that fits the shape of the metal keys.

3. Putting in Metal Keys and Locks: Special alloy keys are put into those slots and hammered to make a strong bond between the two metals.

4. Stitching with Pins or Studs: Along the fracture line, holes are drilled and threaded, and then interlocking stitching pins or studs are put in. These close the crack and make the joint watertight.

5. Finishing: After the region is secured, it is ground flush, sometimes machined, and finished to bring back its original shape, alignment, and surface integrity.

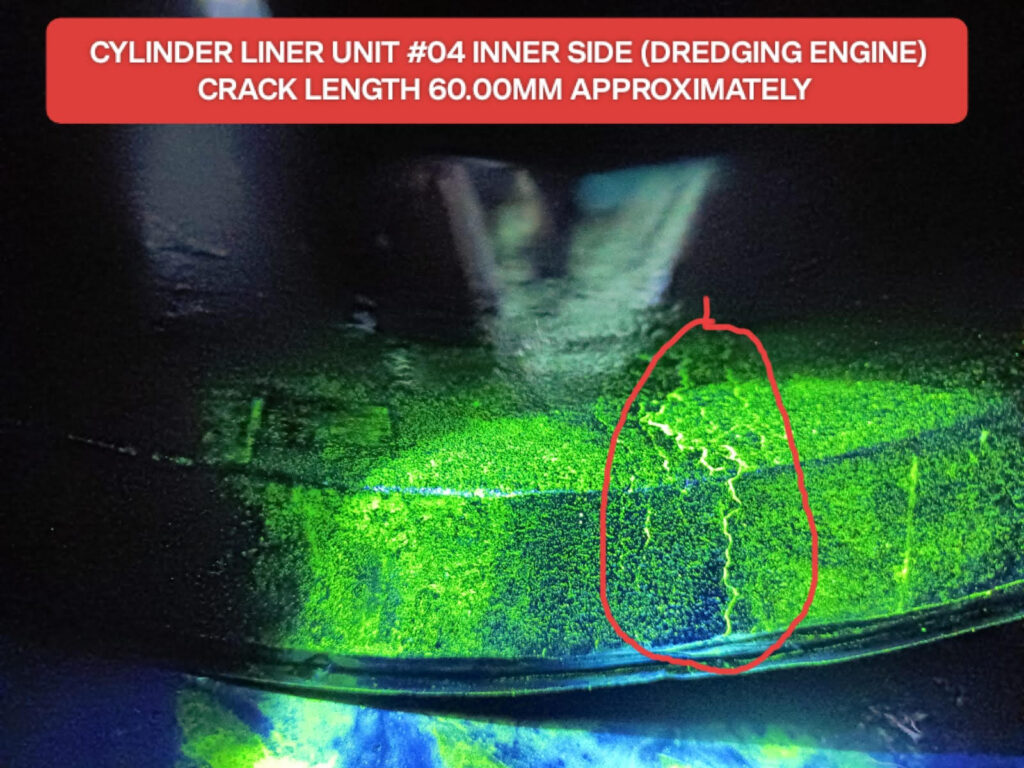

Crack Observed in Cylinder Liner of Main Engine — Crack Observed in Engine Block

Why does it beat welding or replacing it by a long shot

🔥 No heat means no distortion:

Since there is no welding or heat, the old casting won’t warp, have any residual tension, or modify its metal structure, which could make it weaker.

🏗️ Original geometry preserved:

Because the metal isn’t melted or changed too much, the repaired part usually keeps its original alignment, size, and surface finish, which means that re-machining is less likely to be needed.

⚙️ Strong, leak-proof repair:

The metal stitching and locking make the repair as strong as (or sometimes stronger than) the original casting. Repairs are typically gas-tight or liquid-tight, which is beneficial for engine blocks, pump housings, turbine casings, and other things.

⏱️ Quick and onsite:

Repairs can typically be done on-site, so you don’t have to take apart big machines or send parts to a workshop. That means a lot less downtime and big savings over replacing parts.

💸 Cost-effective:

Stitching or locking repairs typically cost a lot less than getting a new casting, and you also eliminate the costs of downtime, transportation, and installation.

Where This Method Can Be Used

Metal stitching works across a ton of industrial components:

Engine blocks, cylinder heads, crankcases
Turbine and compressor housings
Pump & gearbox casings
Machine bedplates, press structures, forging frames

Basically, if it’s cast iron, cast steel, or cast aluminum—and cracked—this method might save it. A ship’s engine block may crack, a power plant’s pump casing may break, or a foundry’s press frame may fail.

Why Metal Stitching Makes Even More Sense in 2025

Industries today face massive downtime costs. Welding large castings often leads to distortion, micro-cracks, weakened structure, and costly re-machining. Cold metal stitching avoids all of that. It’s now one of the most preferred emergency repair and maintenance solutions in marine, power, manufacturing, and heavy equipment industries because it’s quick, eco-friendly, and keeps expensive parts in use for years.

A Real-World Win

Imagine a diesel engine block with a massive crack. Most people would write it off as scrap. But with cold stitching — drilling, inserting keys, sealing with pins, pressure testing, and machining — the block comes back as strong as new. Many marine vessels, power plants, and factories around the globe have saved valuable components this way.

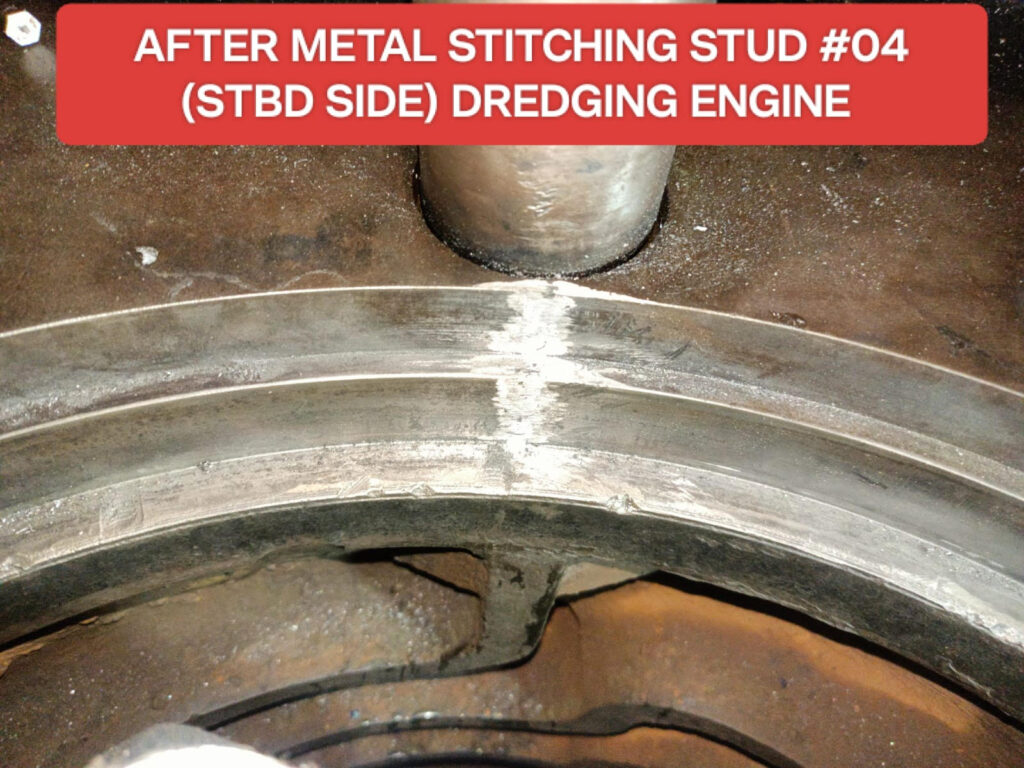

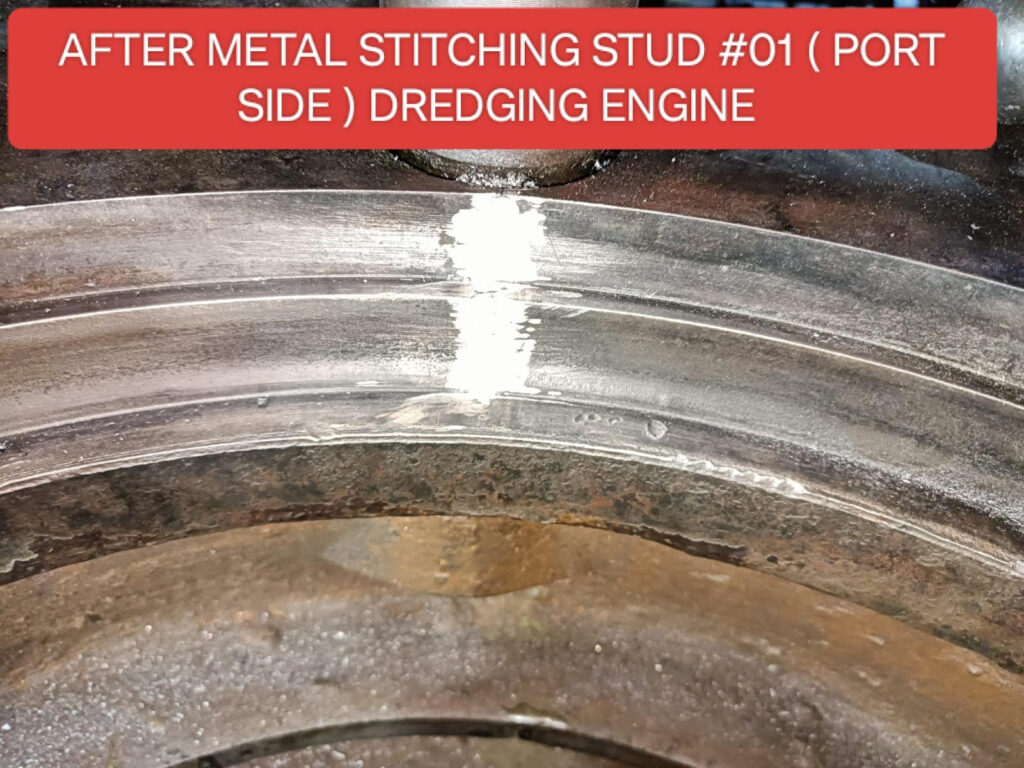

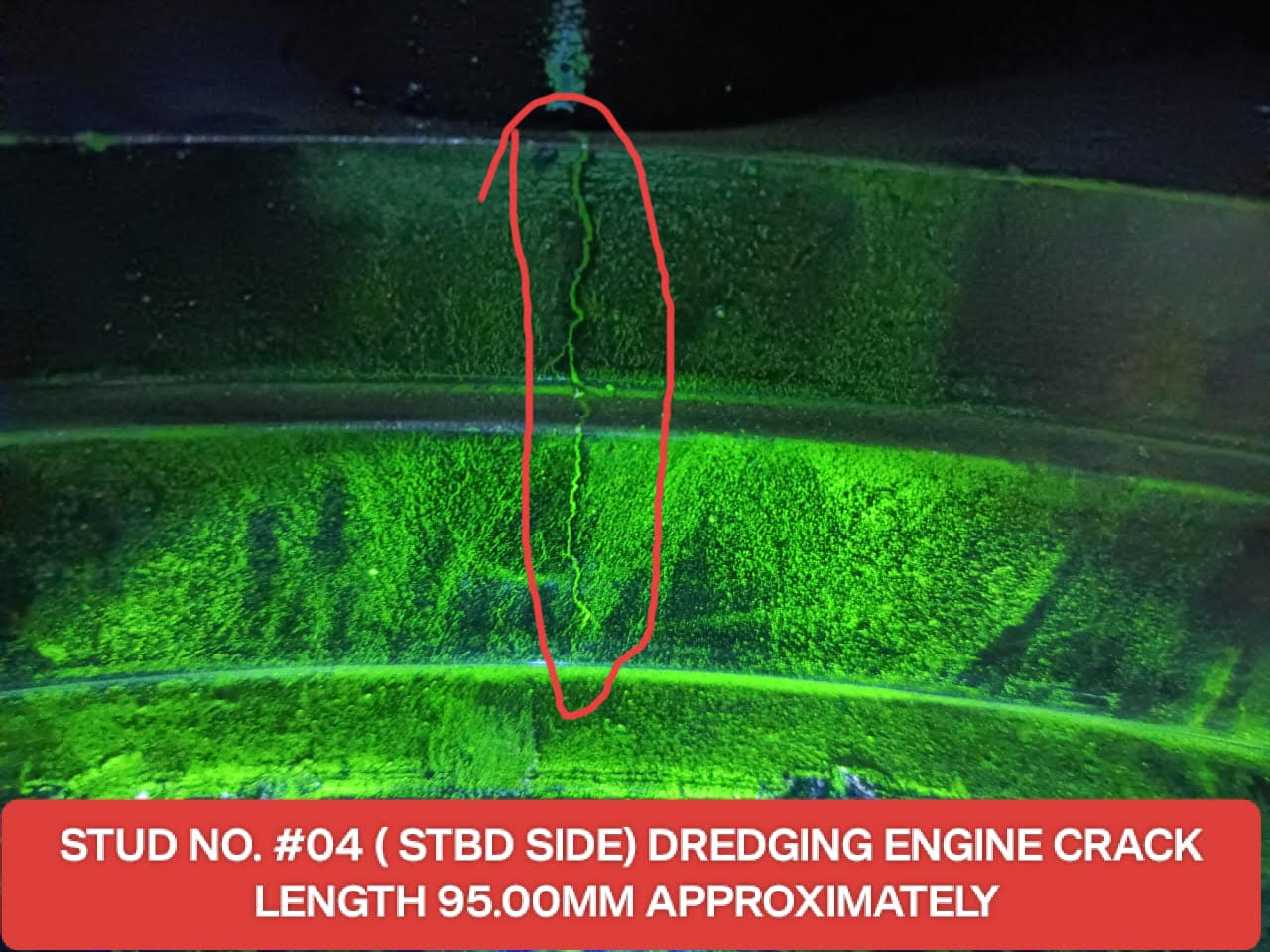

Engine Block Crack Detected in MPI — Engine Block After Metal Stitching

When Metal Stitching Might Not Fit the Situation

It’s not magic — a few things can limit it:

If the casting is shattered into many pieces
If the damage is too extensive
If unskilled technicians attempt the repair
If the component will operate under extreme stress, needing deeper analysis

Quality of workmanship matters a lot in this process.

Don’t rush to scrap or weld a cracked engine block, turbine casing, or any expensive casting. Cold-metal stitching is a proven, cost-saving, distortion-free, and long-term solution trusted worldwide. It’s efficient, affordable, and gives old components a new life — exactly why it should be part of every maintenance strategy.

For any information regarding metalock, metal stitching, engine block repair, please email us at rajshahani@rapowersolutions.com, info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.

FAQs

1: What exactly is Metal Stitching / Metal locking—and how does it repair cracked castings without welding?

Metal Stitching / Metal Locking is a “cold-repair” method used to fix cracks or fractures in cast iron, cast steel, aluminium, or similar cast parts. Instead of welding (which melts metal and adds heat), the process uses specially engineered metal “keys,” “locks,” and stitching pins to mechanically draw the cracked parts back together. The crack is sealed, and structural integrity is restored—all without changing the metal’s original thermal properties or causing heat-related distortion.

2: What kind of materials and components can be repaired using this method?

Metal stitching/locking works on a variety of heavy-duty cast components: cast iron, cast steel, and cast aluminium parts. It’s commonly used for things like engine blocks and crankcases, turbine and compressor housings, pump and gearbox casings, industrial machine bedplates, press frames, and many other cast components — basically, any cracked casting that needs structural repair.

3: Is the repair process done onsite, or do I have to send the part to a workshop?

One of the biggest advantages of this method is that repairs can usually be done onsite. There’s often no need to dismantle the entire machine or ship the casting to a workshop. That means reduced downtime, lower transport costs, and faster turnaround—especially valuable in heavy-industry, marine, power-plant, or industrial settings.

4: Will the repaired casting be as strong and reliable as a new one? Can it handle pressure, fluid sealing, and heavy loads?

Yes — when done correctly, metal-stitched/locked repairs are often gas-tight or liquid-tight and restore structural strength comparable to (or sometimes better than) the original casting. Because there is no heat distortion, the original geometry and alignment are preserved. This makes the repair suitable for components under pressure (engine blocks, pump housings, turbine casings, etc.) and supports heavy industrial load-bearing requirements.

5: Are there limitations—like cases when Metal Stitching might not work?

Yes. While it’s a powerful repair method, it’s not magic. If the casting is shattered into many pieces, or if the damage is too extensive (beyond a clean crack), stitching/locking may not be feasible. Also, the quality of the repair depends heavily on the technician’s skill—misaligned drilling, poor key/pin insertion, or shoddy finishing can lead to weak repairs. In high-stress or fatigue-sensitive components, sometimes further stress analysis is needed to decide whether repair or full replacement is safer.
